BOOK386EN0.1.pdf

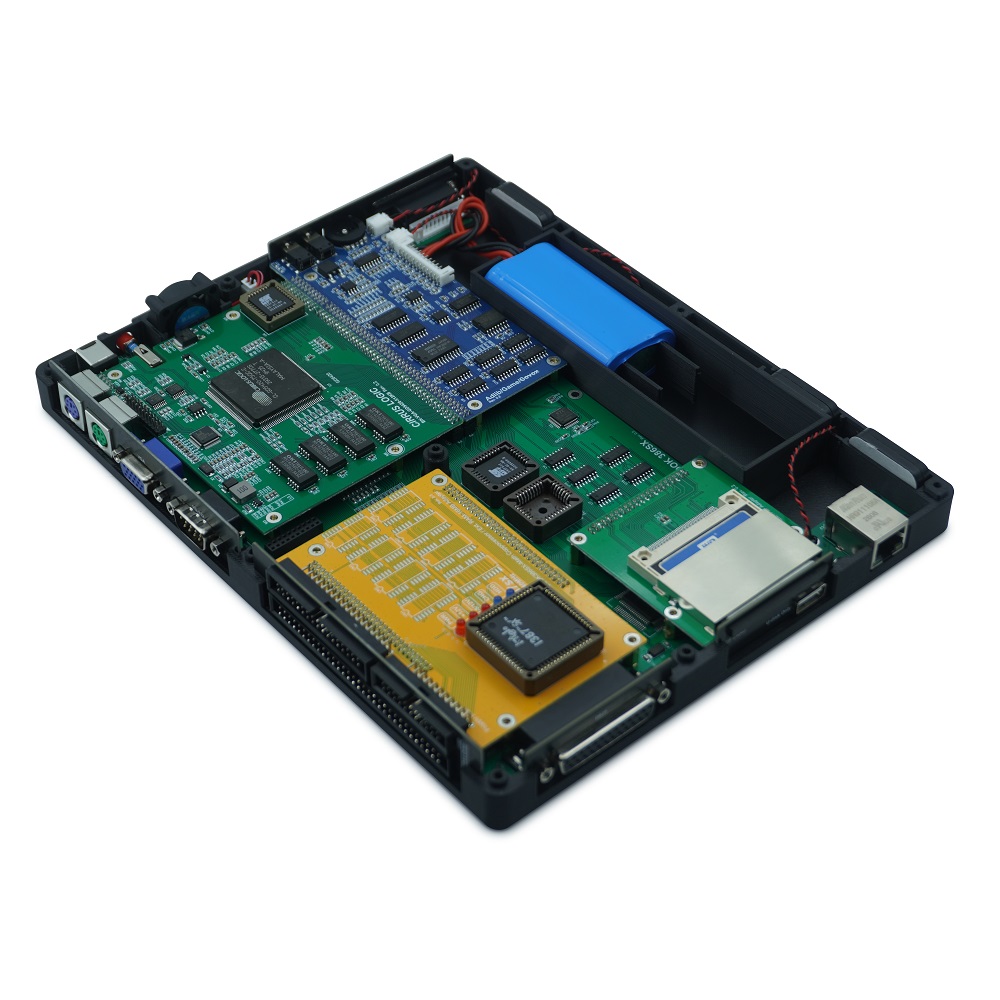

Motherboard Schematic diagram:

BOOK386_Motherboard_Rev0.5.pdf

Motherboard PCB Source file:

BOOK386_Motherboard_Rev0.5.rar

387 expansion board:

BOOK386_387Card_Rev0.3.pdf

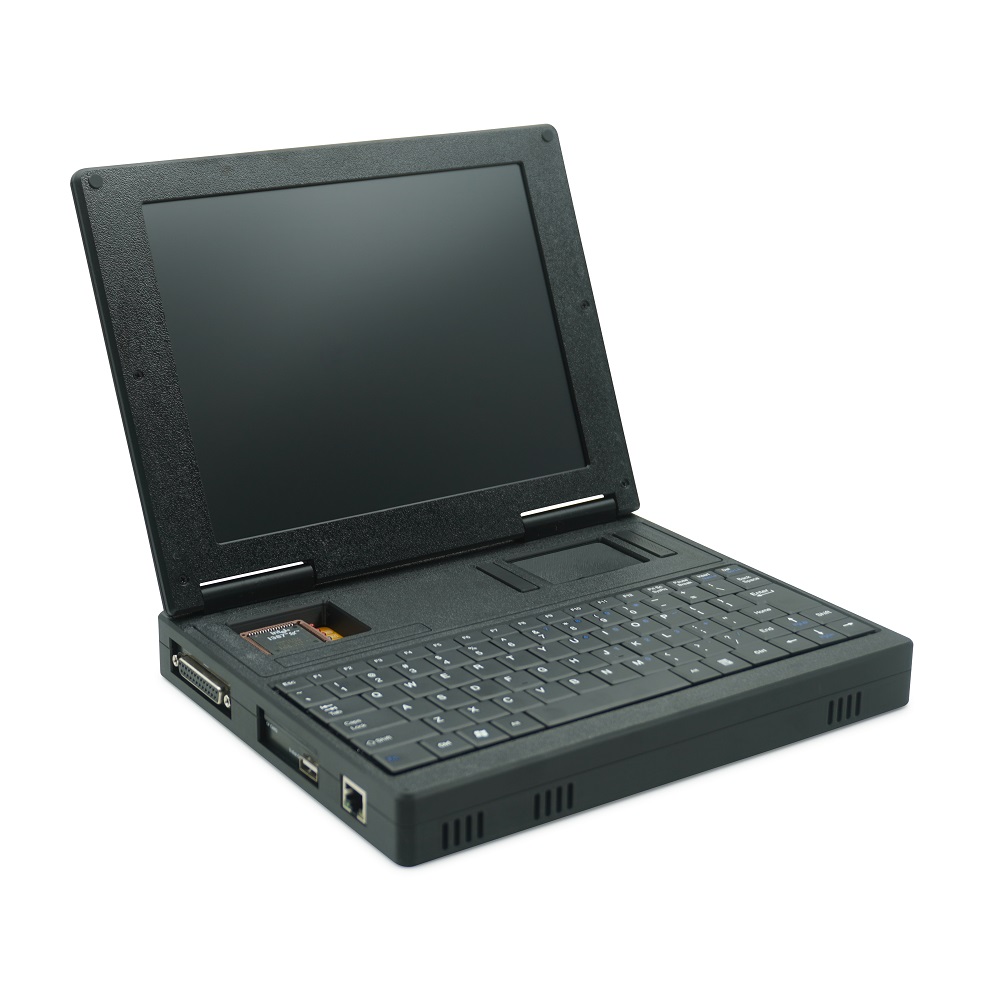

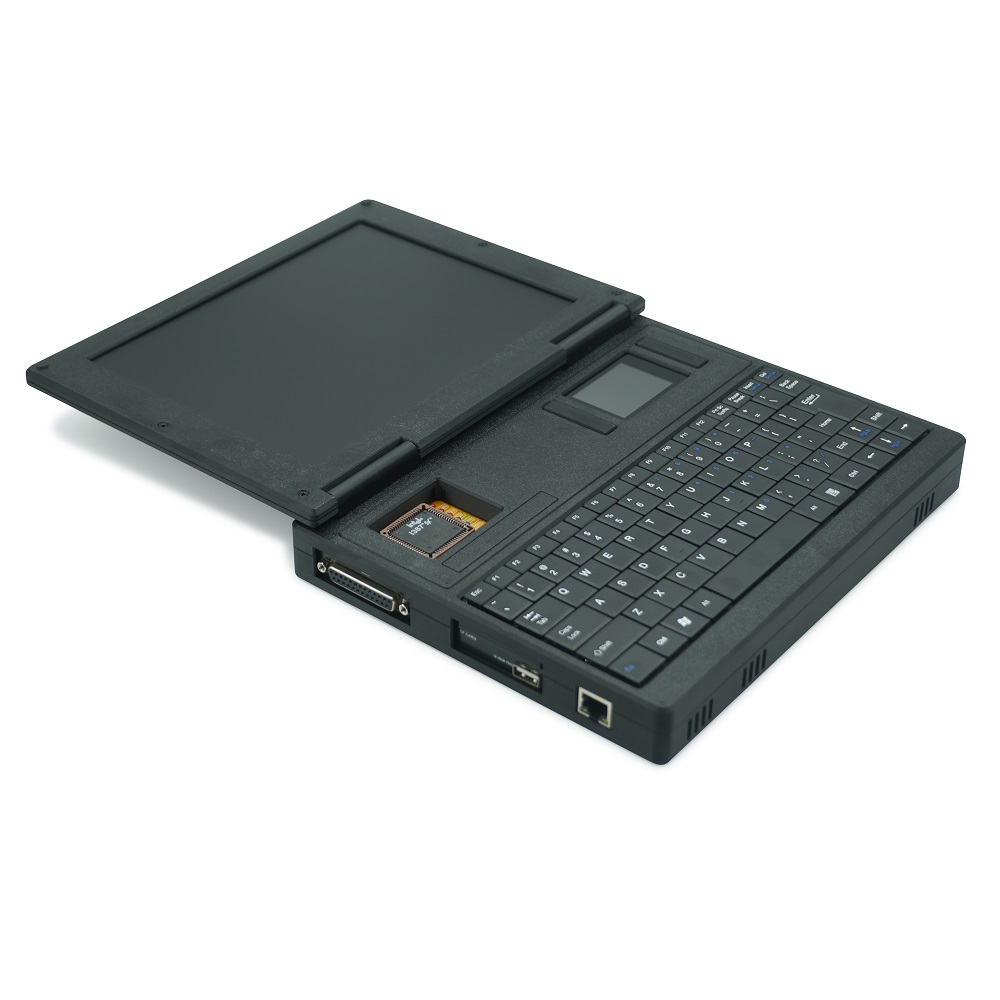

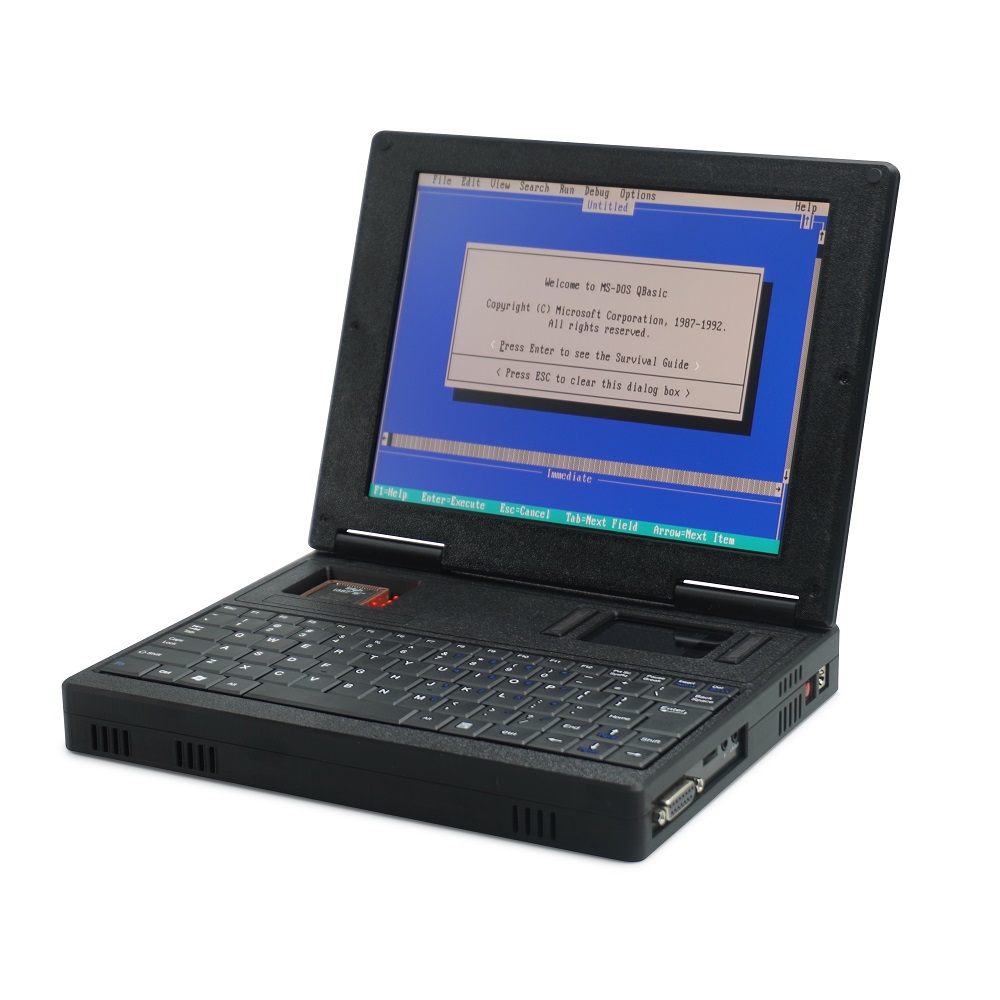

Overview

Processor (CPU):                  386 SX (40MHz) embedded in an Ali M6117 chipset.

Math Coprocessor (FPU):     387 SX socket.(33-40Mhz only)

System Memory:                 16MB DRAM.

Graphics Card:                    VGA Card

Display:                               4:3 IPS LCD (Matte / 178° wide viewing angle).

Storage:                              CF Card Storage (IDE Mode).

Audio System:                     OPL3 Sound Card (Yamaha YMF262-M).

Network Adapter:                RTL8019AS Network Adapter.

Power Supply:                     18650 Lithium Battery.

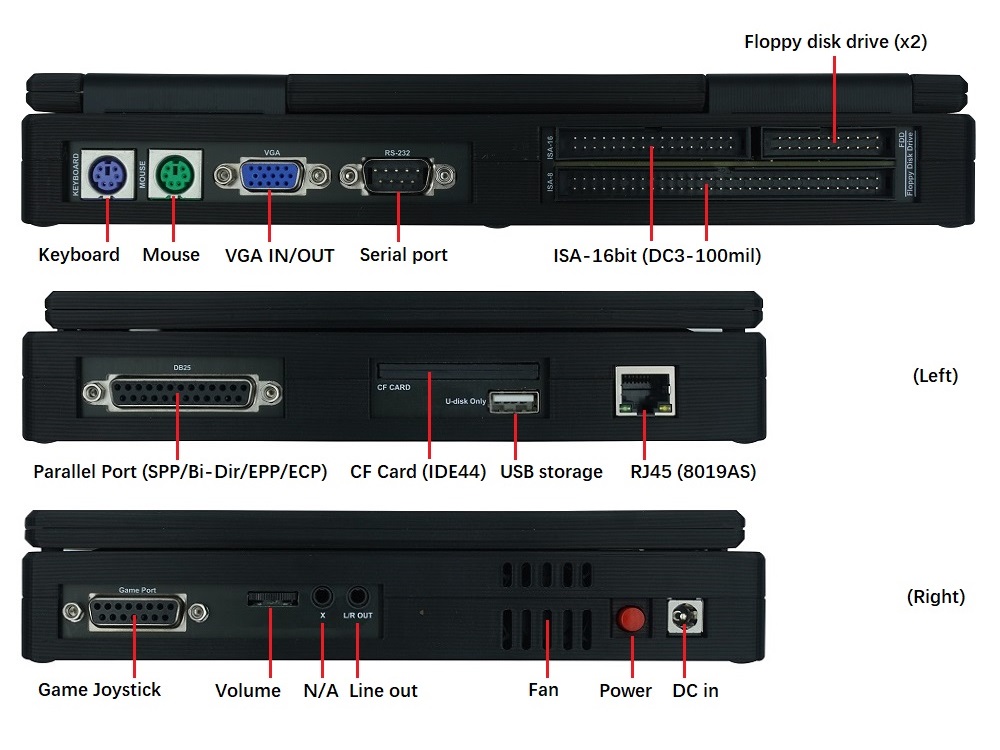

USB Port:                            CH375B USB Controller

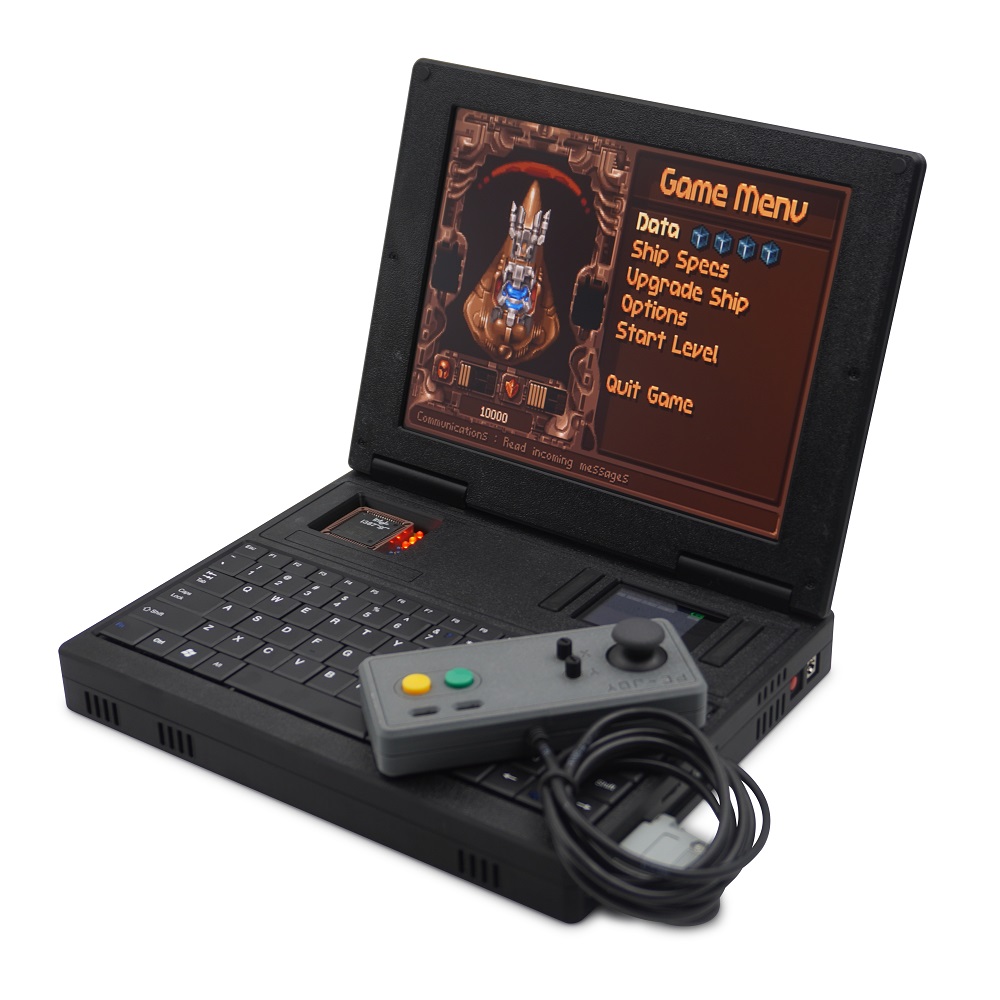

GamePort:                           IBM PC compatible game controller adapter

Serial Port:                           RS-232

Parallel Port :                       DB25 (SPP/Bi-Dir/EPP/ECP)

Floppy disk drive interface

16Bit ISA External Interface

The M6117 supports an external 387SX coprocessor clocked synchronously with the CPU.

Important Note: Because the onboard 386SX CPU runs at 40MHz, any 387SX coprocessor rated below 40MHz will be forced to overclock. Coprocessors rated at 25MHz or lower typically will not function properly.
