PC-JOY01.pdf

====================================================================

PC-JOY (DB15)

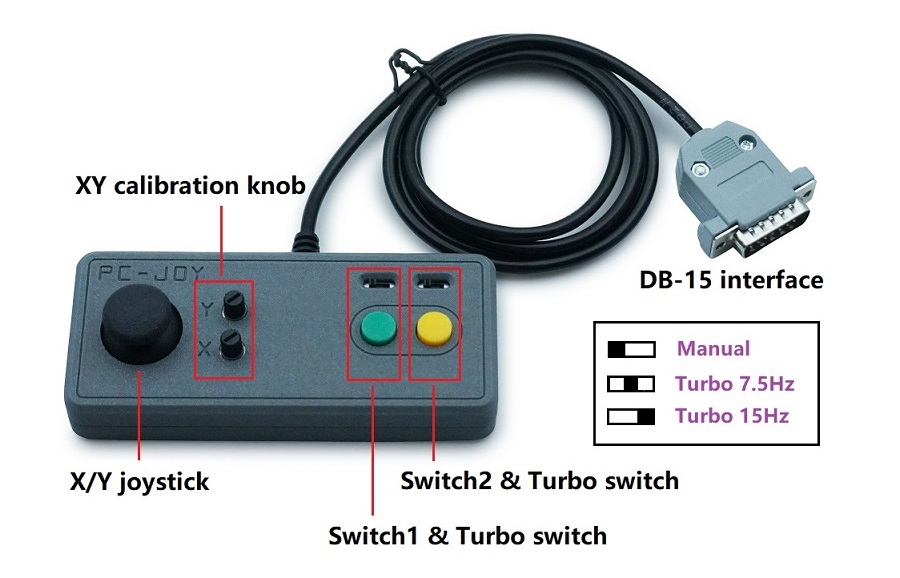

PC-JOY is a card-shaped game joystick compatible with PCs equipped with a DB15(GamePort). Building upon the legacy 'flight joystick' functionality, this design replaces mechanical calibration with potentiometer-based calibration and integrates two independent turbo switches.

It utilizes a 3D joystick potentiometer for XY-axis control.

Both the Switch1 and Switch2 buttons are each equipped with a Turbo switch, which can be selected among three modes: Manual, Turbo1 (approximately 7.5Hz), and Turbo2 (approximately 15Hz).
