SCH & PCB file of the Motherboard:

SCH_PT386_1.2(M6117D).pdf


SCH_PT386_1.2(M6117D).rar


SCH & PCB file of the VGA card:

VGA_GD5428-29_SCH_Rev1.1.pdf


VGA_GD5428-29_PCB_Rev1.1.rar


User’s Guide:

Pocket386-EN1.0.pdf


=======================================================


  • Introduction to New Features

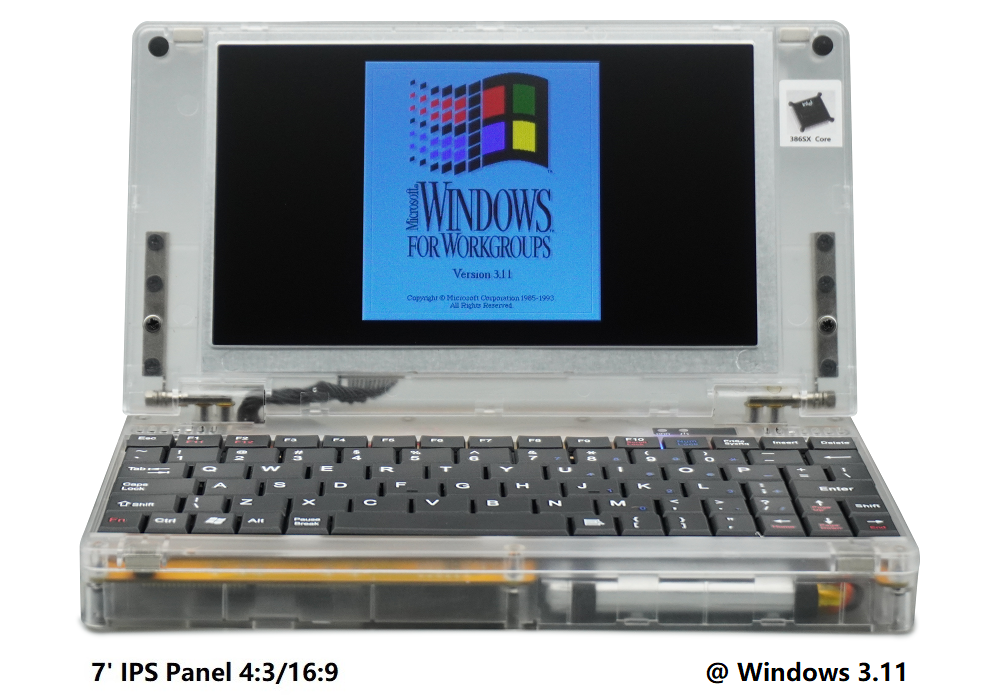

Display Aspect Ratio Switching (4:3 & 16:9): Utilize the OSD menu with Fn+F4 to seamlessly switch between 4:3 (default) and 16:9 display ratios.


(4:3 mode)


(16:9 mode)

  • On-Screen Display (OSD) (Fn+F4)

The advanced OSD feature allows for on-screen overlay of function menus, enabling users to adjust LCD parameters such as brightness, contrast, and color. Additionally, it provides real-time status updates on internal devices and battery level without interrupting PC operations.

DSC00934 - 副本.JPG DSC00935 - 副本.JPG

(Partial functions of OSD)

  • Integrated Mouse Control:

Users can enable the built-in mouse feature without an external PS2 mouse, using keyboard directional keys for navigation. The "?" and "shift" keys function as left and right mouse buttons, respectively.

DSC01119 - 副本.JPG

( )

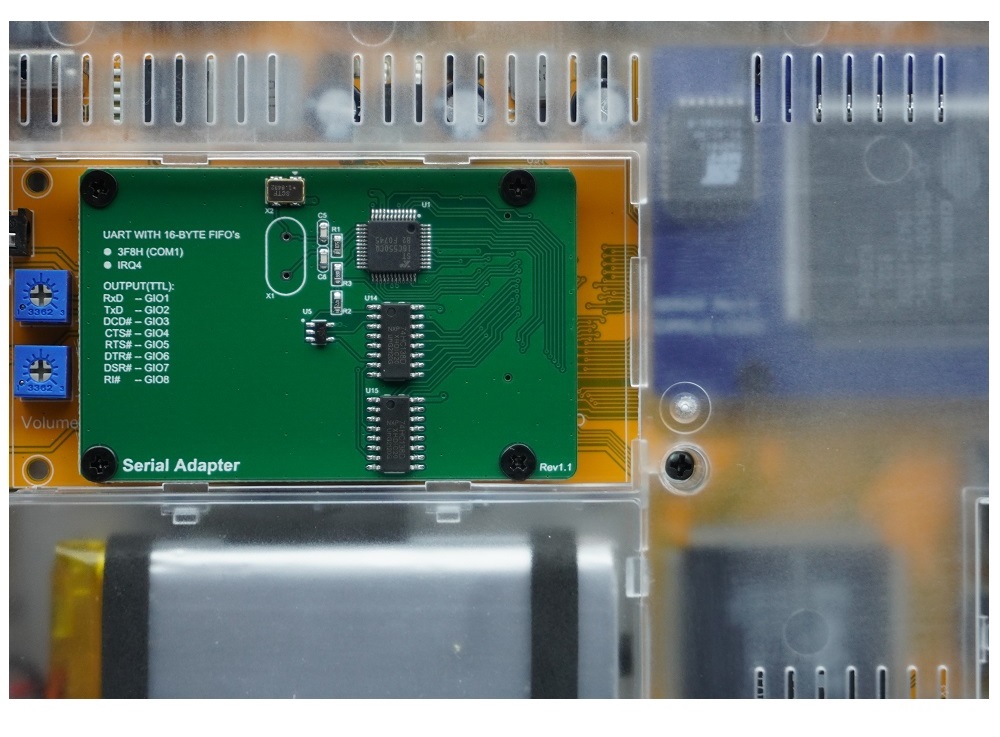

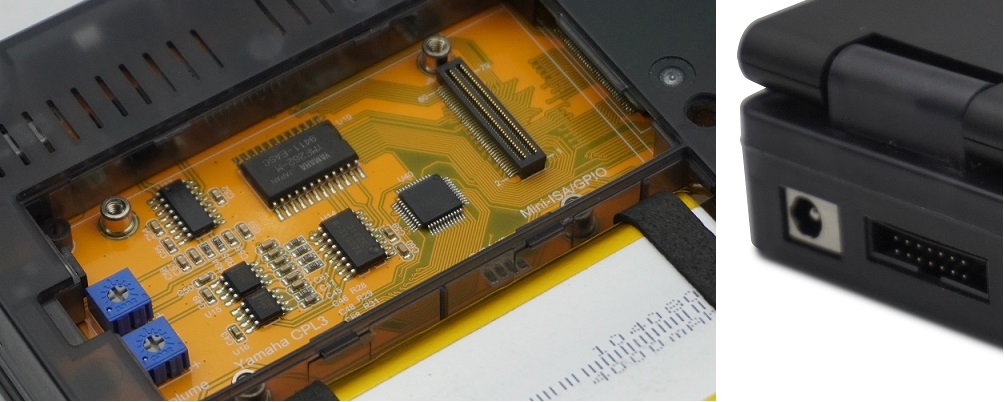

  • Internal ISA Interface & GPIO Expansion:

The device supports the addition of a 16-bit ISA adapter, such as serial or network adapters, offering customization through 9 GPIOs accessible via the rear interface.

DSC00970 - 副本.JPG

( )

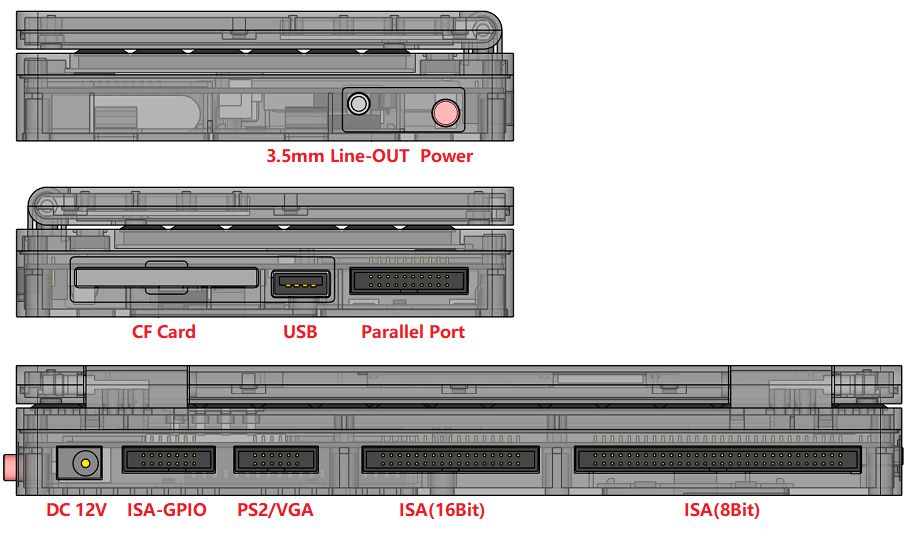

  • Connectivity and Expansion Ports:

Equipped with a built-in CH375 USB controller for DOS/Windows compatibility, 16-bit ISA bus extension, PS2 ports, VGA output, and a DB25 parallel port, facilitating versatile connectivity and expansion.

  • Overview

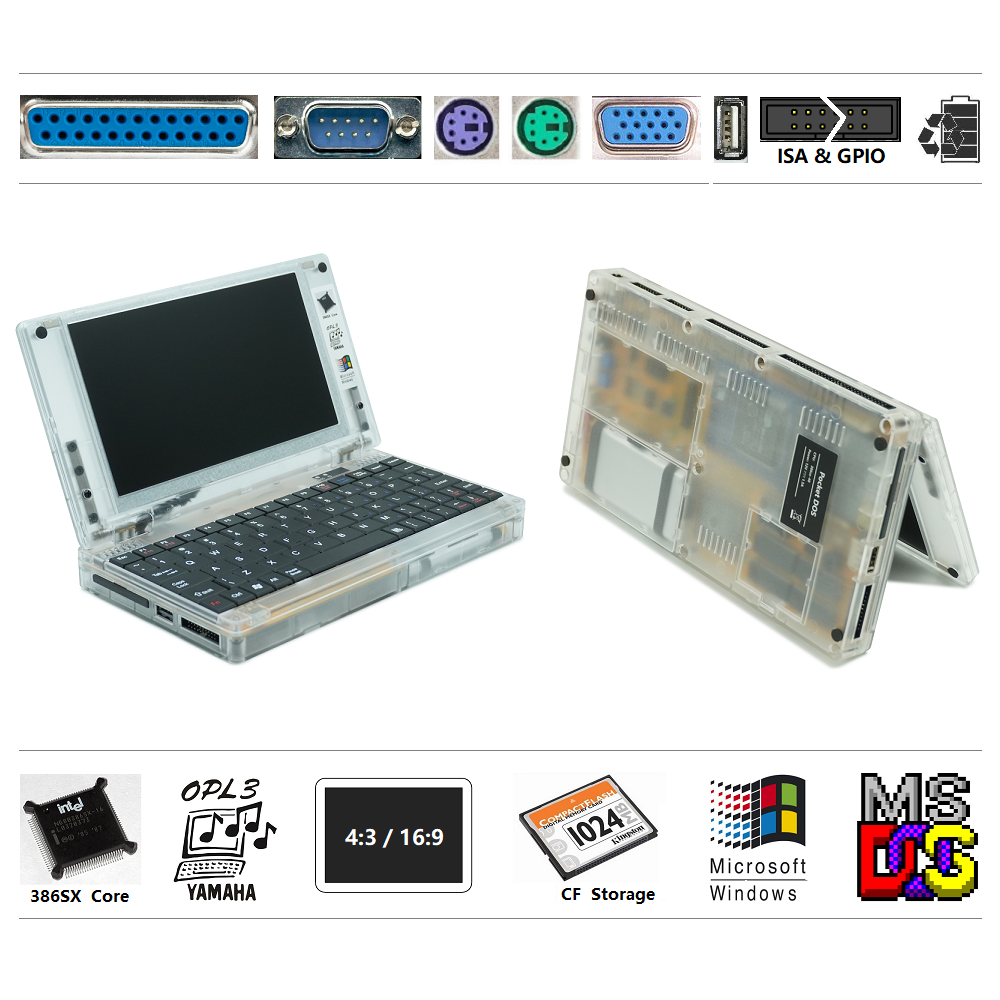

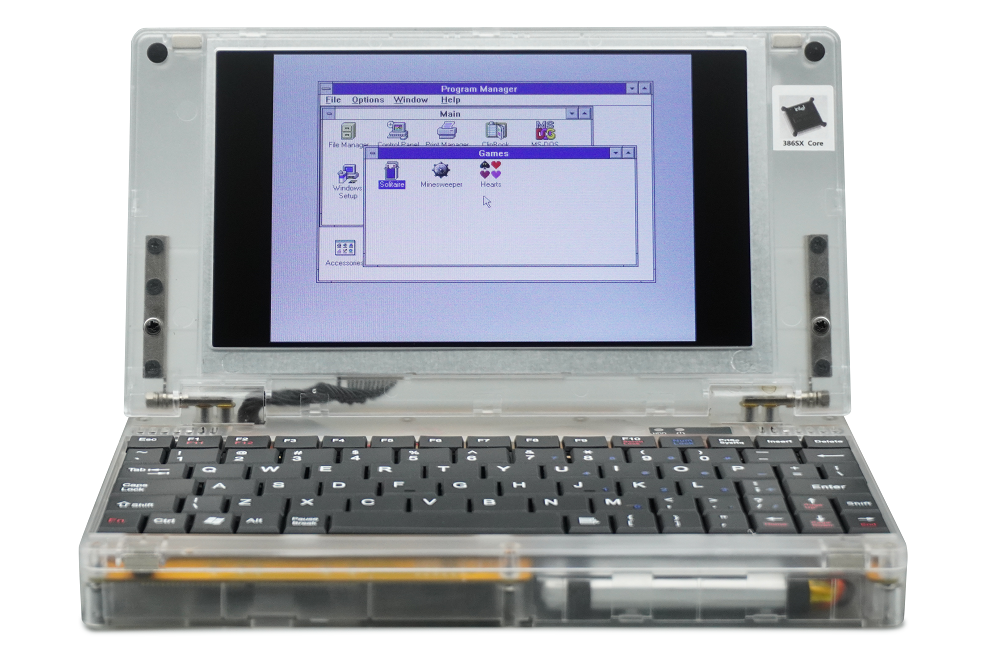

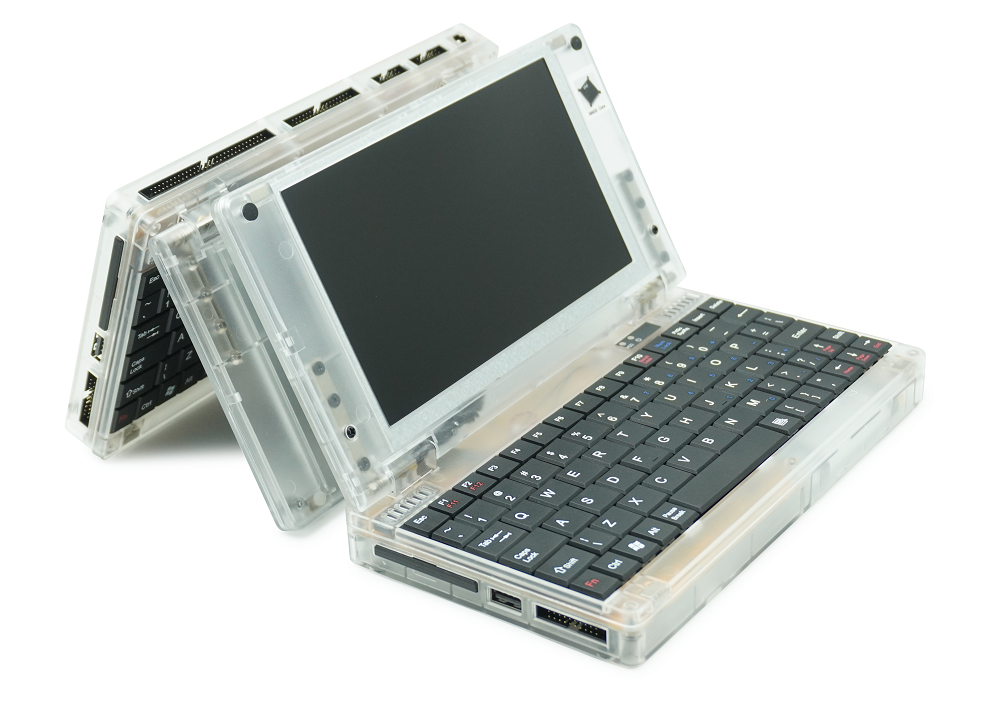

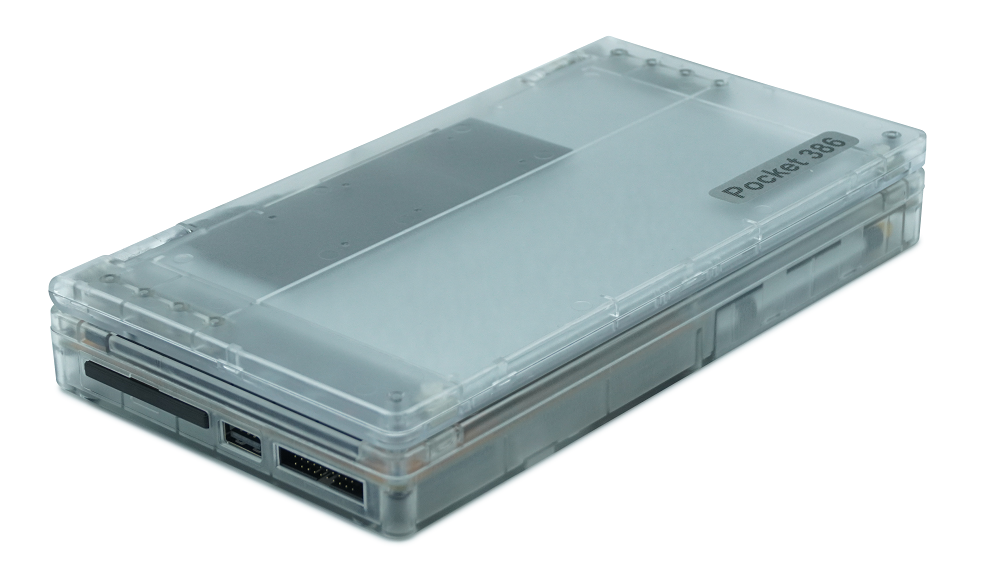

    IBM PC Compatible Handheld Computer

    386 SX (40MHz) Embedded in an Ali M6117

    8MB DRAM

    Replaceable VGA Card ( CL-GD542X / TVGA9000 / CHIPS F655xx )

    Seamless Online Switching between 4:3 and 16:9 display ratios. (640x480 / 800x480)

    CF Card (IDE Mode) Storage

    USB Controller (CH375B)

    OPL3 (Yamaha YMF262-M) Sound Card

    Built-in Mouse

    OSD/SOSD LCD Control

    Lithium Battery

    External Interface

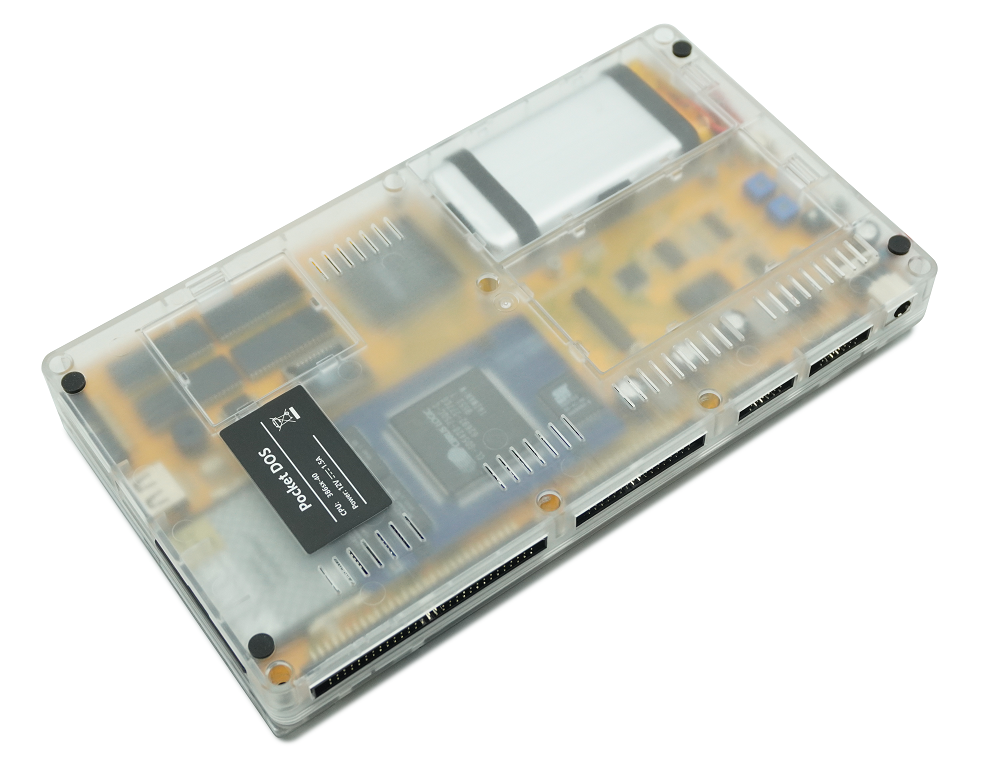

PT386后视图 - 副本.bmp

()
